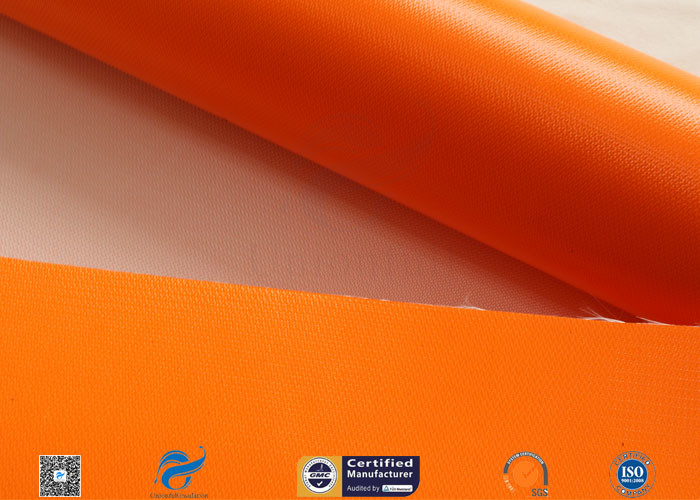

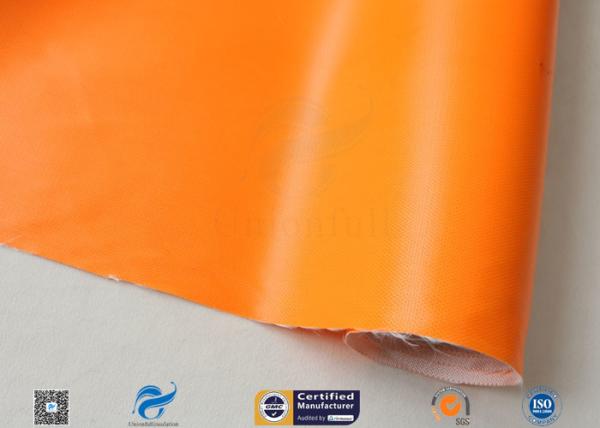

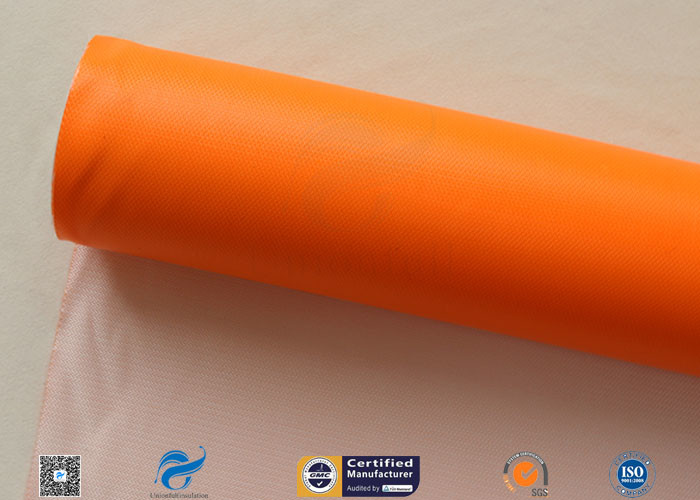

Orange Silicone Rubber Coated Fiber Glass Fabric Thermal Insulation Materials

Brand Name : Unionfull

Model Number : UPSE-8732S40

Certification : ISO9001:2008, SGS

Place of Origin : China

MOQ : 500 Meters

Price : $2.5-3.5/ Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000 square meters per day

Delivery Time : 15 Working Days After Receiving Payment

Packaging Details : 50 meters per roll with poly bag

Base Cloth : 3732 Fiberglass Fabric

Coating : Orange Silicone, 40gsm on one side

Total Thickness : 0.45mm

Weight : 430g/m2+40g/m2coating)

Width : 1000/1270/1550mm

Feature : Thermal Insulation, Electric Insulation

Weave : Satin Weave

Contact Now

Orange Silicone Rubber Coated Fiber Glass Fabric Thermal Insulation Materials


Orange color silicone rubber coated fiberglass fabric is made of glass fiber fabric which is coated with 40g/m2 orange silicone/rubber on one side. This basic e-glass fiberglass fabric can be used well under a high temperature of 550℃. But the orange rubber/silicone coating can stand temperature only 260 degree.

Silicone coated fiber glass fabric is a flexible, tear resistant and fire resistant fabric. It is made from fireproof fiberglass cloth with features such as
structure stability, abrasion resistance and high strength. And because of the silicone coating's great features, this rubber coated fiberglass cloth are widely used for production of industrial protective products such as fire blankets, expansion joints, flexible fabric ducts, pump/pipeline thermal insulation jackets and fire fighting equipments.


Yarn type of this silicone coated fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight of this silicone coated fiberglass fabric is 470g/m2. 430g/m2 basic cloth+40g/m2 silicone coating on one side. Common widths we produce are
100cm, 127cm and 155cm . (more economical price and less lead time)

Technical Data Of 3732 Fabric
Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m


Specification Of UPSE-8732S40:
Item Orange Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 470g/m2(430+40)
Thickness 0.45mm
Width 100cm, 127cm, 155cm
Working Temperature

Silicone Coating below 260℃


Features:

  • Resist chemical agents
  • Abrasion resistance, high strength
  • Tear resistance
  • Electric insulation
  • Fire resistance
  • Working temperature from -50℃ to 260℃


Application:

  1. Freeze/heat protection covers
  2. Fire doors & fire curtains
  3. Cable, pipeline, pump thermal insulation covers
  4. Fire protective wear
  5. Flexible fabric duct
  6. Hot air blower
