0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

Name: 05Mm 3732 Silver Coated Fabric Silver Coated Fiberglass Fabric Aluminium Foil Cloth
Brand: Unionfull
Price: 2.55 USD

China 0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth wholesale

Brand Name : Unionfull

Model Number : JT8430AFS-50-100

Certification : ISO9001:2008, SGS;TUV

Place of Origin : Zhejiang, China

MOQ : 500 meters

Price : $2.55--$4.35/m2

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 70,000 Square Meters Per Day

Delivery Time : 2 weeks after receiving payment

Packaging Details : One roll 50 meters with poly bag

Basic : 430gsm Fiberglass Cloth

Total Weight : 520g/m2

Thickness : 0.5mm

Width : 39 Inches

Color : One side grey, one side silver

Weave : Satin

Contact Now

0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

Basic of this one side silicone, one side aluminium foil fiberglass cloth is 430g/m2 fiberglass fabric. A layer of aluminium foil is laminated on the fiberglass cloth by high temperature adhesive. Another side is grey silicone coating. Total weight of this two side coard fabric 520g/m2 and thickness is 0.5mm.

The basic fiber glass cloth can resist temperature from -50 to 550℃. But the adhesive for aluminium foil should be used below 300℃ continuopusly. For another side silicone coating is able to withstand heat below 260℃.

One side aluminium foil one side silicone coated fiberglass fabric is widely used for heat insulation and heat reflective application. It is tear resistant, fire resistant, anti chemical corrosion, electrical insulation and waterproof to some extent.

Data Sheet

Material		Aluminium Foil / Silicone Fiberglass Fabric
Weaving		Satin
Yarn Type		EC9 33 2X2 / EC9 33 2X2
Weight		520g/m2
Thickness		0.5mm
Thickness Of Aluminium Foil		7micron/18micron/25micron, 50U max
Tensile Strength	Warp	6000 N/5cm
	Weft	4500 N/5cm
Width		100cm, 39 inches
Service Temperature		Fibreglass Cloth: 550℃ Adhersive, Silicone coating: 260℃

Features:

Heat reflective
Fire resistant
Waterproof
Durable, high strength
Chemical corrosion resistant
Anti aging, weather
Electrical insulation

Application

Hot work protective wear
Electrical euipment cover
Thermal insulation blanket
Fire curtain, welding blanket
Construction
Automotive industry

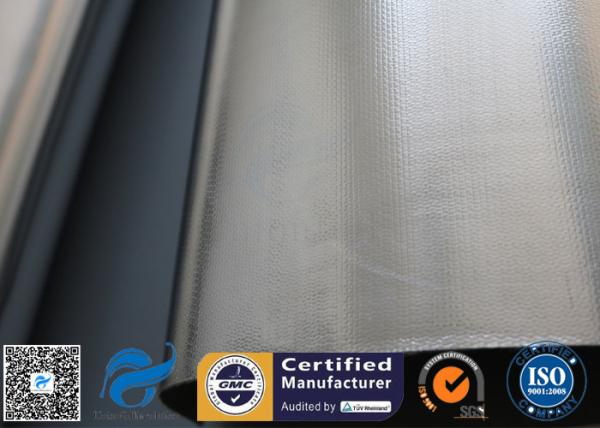

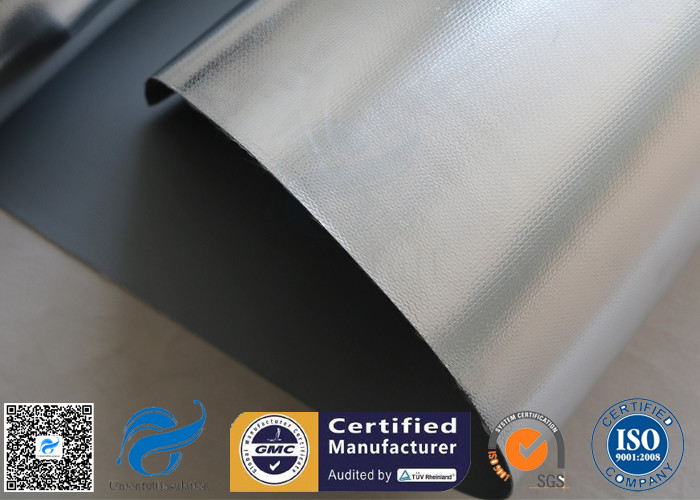

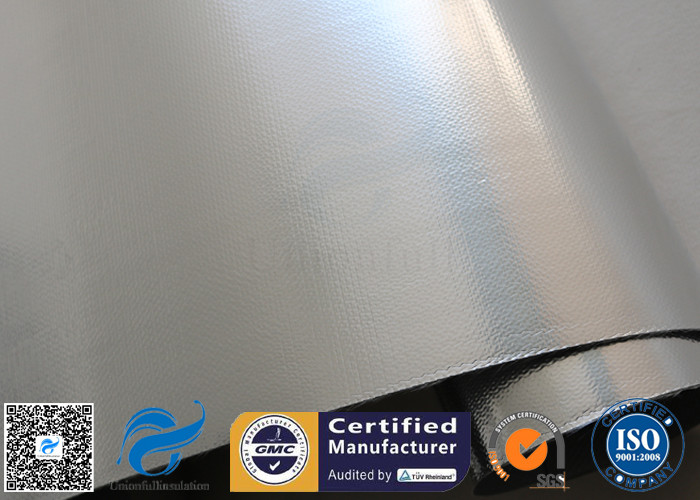

Pictures:

0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth
